Blue Coat Responses and Request Mode Policies

To add the response mode policy:

1. Select Management.

Type the logon user name and password if prompted.

2. Click Policy on the left menu, then click Visual Policy Manager.

3. Click Start. If the Java Plug-in Security Warning screen appears, click Grant this session.

4. On the menu bar, click Edit > Add Web Content Policy. The Add New Policy Table screen opens.

5. Type the policy name under the Select policy table name field. Click OK.

6. Under the Action column, right-click Bypass ICAP Response Service and click Set. The Add Object screen opens.

7. Click New and select Use ICAP Response Service. The Add ICAP Service Action screen opens.

8. Choose the ICAP service name under the ICAP Service/Cluster Names field.

9. Enable Deny the request under the On communication error with ICAP service section. Click OK, then click OK again.

10. Click Install Policies.

To add the request mode policy:

1. Follow Step 1 through Step 5 in the previous procedure.

2. Under the Action column, right-click Deny and click Set. The Add Object screen opens.

3. Click New and select Use ICAP Request Service. The Add ICAP Service Action screen opens.

4. Choose the ICAP service name under the ICAP Service/Cluster Names field.

5. Enable Deny the request under the On communication error with ICAP service section.

6. Click OK and then OK again.

7. Click Install Policies.

8. Configure both the request and response mode ICAP services.

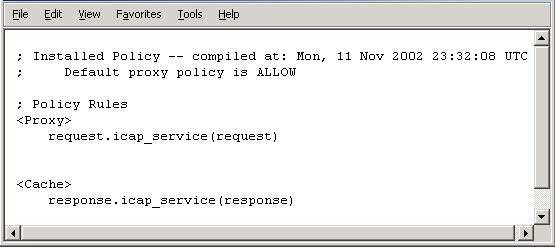

To check the current policy, go to the Policy screen, click Policy Files, and then click Current Policy.

Install Policies Screen
