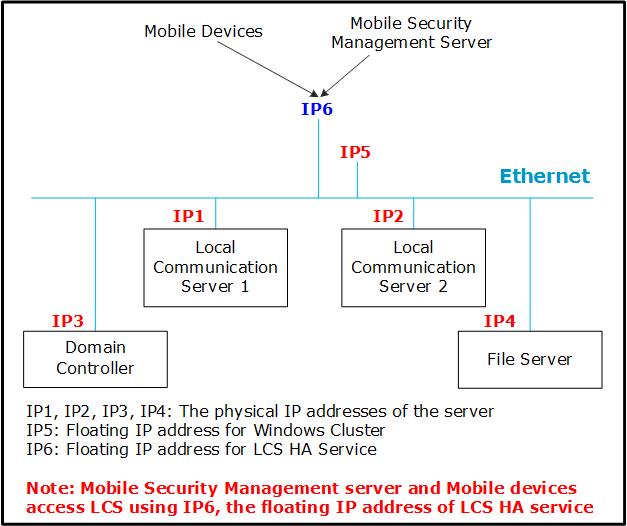

To set up High Availability (HA), Mobile Security requires configuring all the network components withing the same network domain using certain IP addresses. The following figure shows the details of IP addresses and relationship between each network component.

This section assumes the IP addresses for each of the components in the network. Replace the IP addresses mentioned in the following table with the actual IP addresses in your network.

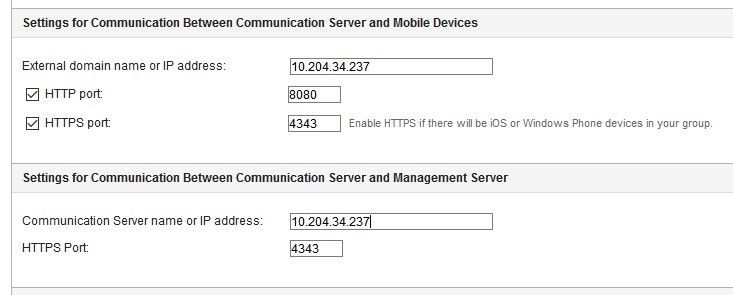

Assuming the IP addresses and port numbers in the table above, the following will be the configuration for Local Communication Server on the Mobile Security administration web console.

Refer to the topic Configuring Common Communication Server Settings for the detailed procedure for configuring the Local Communication Server.
