Transparent Bridge Mode for High Availability Parent topic

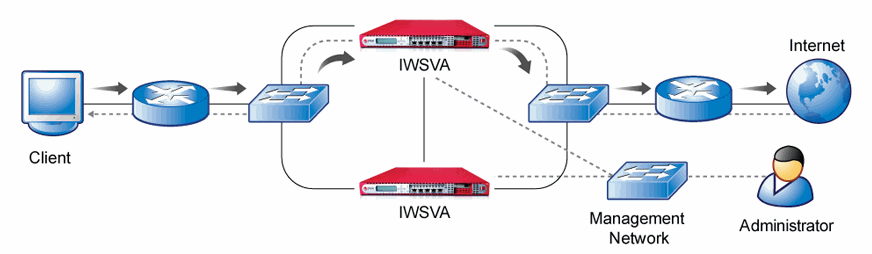

The IWSVA High Availability (HA) solution currently supports active/passive pairs utilizing the Transparent Bridge mode. To deploy an IWSVA cluster with an IPv4 address, each IWSVA unit must use a separate management interface. The Transparent Bridge Mode - High Availability deployment requires at least the following network interfaces for cluster deployment:
  • Two for bridge data interfaces
  • One for the HA interface
  • One for the separate management interface
Note
Note
IWSVA only supports two HA nodes in a single HA cluster.
Using the Deployment Wizard, you can either:
